Chapter 12: Threat, Control, and Tool Mapping

Purpose of Mapping

Threat, control, and capability mapping helps teams understand which control is required for each risk and what type of implementation can support it. Specific tools are listed only as informative examples. They are not endorsed by this guide, may change over time, and must be validated in the reader's environment before being used for release decisions.

Reading note: The Primary Mapping and layered architecture sections are the main reference for threat modeling. Detailed CLI examples are optional and live in the appendix below—skip them unless you are implementing evidence collection.

For broader threat–control coverage across all AI types, use the OWASP AI Exchange periodic table as a complementary index. This chapter maps threats to MLOps lifecycle stages, tool layers, and control points in Chapter 6—it does not reproduce the Exchange catalog.

References / Source mapping

Frameworks and standards - Periodic table of AI security - AI security matrix - Threats overview

Implementation guidance (this guide) - Poisoning taxonomy (Chapter 5) - Lifecycle control points (Chapter 6)

Primary Mapping

Threat	Control	Example capability / non-endorsed tool examples
Data Poisoning	Data validation, lineage, anomaly detection	Great Expectations, Evidently
PII leakage	Sensitive data identification and masking	Presidio, enterprise DLP
Poisoned model	Artifact scan and backdoor test	ModelScan, internal test
Vulnerable dependency	SCA and container scan	Trivy, Syft, Grype
Secret in code or notebook	Secret scanning	Gitleaks, TruffleHog
Prompt Injection	Gateway, red team test, guardrail	Promptfoo, Garak, internal gateway
RAG Poisoning	Ingest and retrieval ACL control	Ingest review, policy engine, access-controlled retriever
Tool Abuse	Intent gate and scoped access	Policy engine, IAM
Memory Poisoning	Sanitization, TTL, and provenance	Internal memory gateway
Runtime leakage	Telemetry and output DLP	SIEM, DLP, AI Gateway
Gradient Leakage (federated)	Secure aggregation, DP	TensorFlow Privacy, OpenDP
Attack on ML security (IDS/malware)	Adversarial robustness in detection model	ART, retraining
Multimodal injection	OCR/audio moderation	Multimodal gateway
API key for LLM	Proxy gateway, kill switch	HashiCorp Vault, cloud secret manager, internal API proxy
Autonomous AI Malware	Agent behavior monitoring, sandboxing, runtime restriction	AI Gateway, Agent Monitoring
AI Worm Propagation (emerging)	Propagation detection, isolation, trust boundaries	Runtime monitoring, EDR/XDR; map to AML.T0070 / AML.T0080 patterns—not a single ATLAS worm ID
AI-driven Reconnaissance	Asset discovery monitoring, attack surface management	ASM tools, SIEM analytics
Autonomous Exploit Generation	Vulnerability intelligence, exploit detection	Threat intelligence platform
AI-driven Lateral Movement	Least privilege, segmentation, agent authorization	IAM, Policy Engine
Compute Hijacking	GPU workload monitoring, resource anomaly detection	GPU telemetry, infrastructure monitoring
MCP tool poisoning	Gateway; schema pin; static + host scan	mcps-audit, mcp-scan (Snyk Agent Scan), MCP-Shield
MCP09 Shadow MCP server	IDE allowlist; registry; Shadow AI program	Ch.11, enterprise MCP gateway
MCP rug pull / schema change	Hash pin on tools/list; re-consent on change	Gateway + CI scan
MCP token exposure	Short-lived OAuth; no secrets in mcp.json	Vault, ThinkWatch, gateway
Agent Persistence	Memory validation, session control	Agent gateway, memory security layer

References / Source mapping

Frameworks and standards - OWASP LLM Top 10 (2025): LLM01, LLM02, LLM03; OWASP MCP Top 10: MCP01–MCP09 - MITRE ATLAS: techniques cross-walked in MITRE ATLAS Mapping - OWASP AI Exchange: AI security matrix

Implementation guidance (this guide) - Appendix A threat card (Chapter 15); Lifecycle control points (Chapter 6)

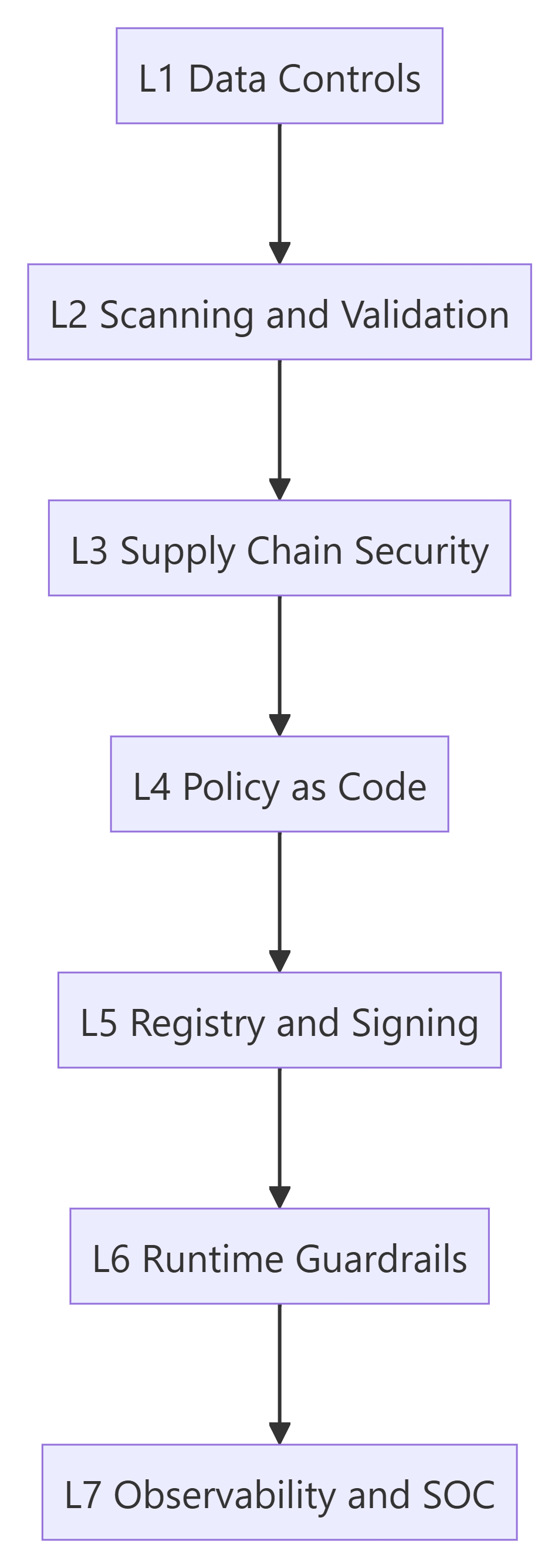

Tool Layers

References / Source mapping

Frameworks and standards - OpenSSF MLSecOps whitepaper (2025): layered security architecture - NIST AI RMF: Map (control placement across lifecycle)

Implementation guidance (this guide) - Layered Tool Architecture; Capabilities by lifecycle area

Capabilities by lifecycle area

Lifecycle area	Control capability	Example implementation
Data ingestion	Schema, PII, quality	Great Expectations, Presidio
Code and notebook	Secret and dependency scan	Gitleaks, Trivy, NB Defense
Model	Artifact scan, adversarial test	ModelScan, ART
Supply chain	SBOM and signing	Syft, CycloneDX, Cosign
Release decisions	Policy-as-code	OPA, Conftest, internal policy engine
Runtime	Guardrail and gateway	NeMo Guardrails, Llama Guard, internal gateway
SOC	Telemetry and detection	ELK, Grafana, SIEM

References / Source mapping

Frameworks and standards - OpenSSF MLSecOps whitepaper (2025): lifecycle-stage security measures - NIST AI RMF: Map / Measure across lifecycle stages

Implementation guidance (this guide) - Lifecycle control points (Chapter 6); OpenSSF mapping in Chapter 11

Layered Tool Architecture

Layer	Role	Lifecycle area	Example tool
L1 — Data and Experimentation	Lineage, versioning, and reproducibility	2, 5	MLflow, DVC, Great Expectations
L2 — Security Scanning and Testing	SAST/SCA, artifact scan, IaC, adversarial and LLM testing	3, 7	Gitleaks, Trivy, Checkov, tfsec, SonarQube, lintML, ModelScan, ART, Garak, PyRIT, Promptfoo, Agentic Security, PurpleLlama, Mindgard, AI-exploits, AI-Infra-Guard
L3 — AI Supply Chain	SBOM/AI-BOM, signing, and provenance	2, 9	Syft, CycloneDX, Cosign, Sigstore, SLSA
L4 — Policy-as-Code	Release decision and dataset compliance	4, 8	OPA, Conftest, Kyverno
L5 — Registry and Deployment	Signed model storage, secret, and key	9, 10	Model Registry, S3/Nexus, Vault/KMS
L6 — Runtime and Guardrails	Prompt filtering, moderation, and AI gateway	Production	Internal gateway, NeMo Guardrails, Llama Guard, Lakera Guard, Patronus
L7 — Observability and SOC	Drift, alert, and SIEM	10	ELK, Grafana, Evidently, WhyLabs, HiddenLayer, Protect AI AIRS

Additional runtime controls (L6):

Control	Purpose
Agent Behavior Monitoring	Detect abnormal autonomous decisions
Tool Execution Policy	Restrict agent actions
Runtime Isolation	Prevent propagation between systems
Resource Monitoring	Detect unauthorized AI workloads
Session Analysis	Detect multi-step attack behavior

References / Source mapping

Frameworks and standards - OpenSSF MLSecOps whitepaper (2025): Sigstore, SLSA, Scorecard, GUAC cross-cutting tools - OWASP AI Exchange: Periodic table of AI security — L1–L7 layer alignment

Implementation guidance (this guide) - Primary Mapping; Appendix: Informative tool command reference

Appendix: Informative tool command reference

Optional section. The mappings and lifecycle layers above are sufficient for architecture and governance reviews. Use this appendix when selecting tools and drafting evidence-collection commands.

Design principle: controls must support a documented decision

observe → parse result → decision (pass/fail/exception) → evidence → review

A tool that only reports but is never reviewed or tied to a release decision is an Anti-pattern (Chapter 9). In automated environments, tools may return exit code != 0 or structured JSON; in manual or managed-service environments, outputs may be reviewed by an approver or GRC workflow. The requirement is documented decision-making, not a specific automation mechanism.

L2 — Model Artifact Scan: ModelScan

Purpose: Detect malicious code and unsafe operations in model files (pickle, H5, SavedModel, PyTorch) before load.

pip install modelscan
# Scan a model file or folder
modelscan -p ./models/model.pkl
# JSON output for Evidence Pack
modelscan -p ./models/ -r json -o modelscan-report.json

Decision behavior: modelscan returns exit codes that can support an automated or manual release decision:

Exit Code	Meaning	Recommended decision
0	Clean, no vulnerabilities	Continue
1	Scan successful, vulnerability found	Reject or escalate release
2	Scan error	Investigate and stop
3	Unsupported file	Warning
4	Usage error	Fix command

Evidence: modelscan-report.json file. This control maps to lifecycle control point 2 (Load Artifacts).

L2 — Secret Scanning: Gitleaks

Purpose: Find API keys, tokens, and credentials in code, notebooks, and git history.

# Scan repository and return non-zero if a secret is found
gitleaks detect --source . --report-format json --report-path gitleaks-report.json --exit-code 1

Decision behavior: With --exit-code 1, finding any secret should reject or escalate the release decision. Evidence: gitleaks-report.json.

L2 — Dependency and Container Scan: Trivy

Purpose: SCA for dependencies, container image scan, and IaC misconfiguration.

# Scan project dependencies
trivy fs --scanners vuln,secret,misconfig --severity HIGH,CRITICAL --exit-code 1 .
# Scan inference service image
trivy image --severity CRITICAL --exit-code 1 myorg/llm-serving:1.4.0

Decision behavior: --exit-code 1 combined with --severity CRITICAL identifies findings that should block or escalate release. Evidence: output with --format json.

L2 — Notebook Scan: NB Defense and lintML

Purpose: Notebooks and ML code often contain secrets, sensitive output, and unsafe patterns.

# NB Defense for notebook scanning
pip install nbdefense && nbdefense scan ./notebooks/
# lintML: security linter for ML code (from Nvidia); requires Docker for underlying scanners
pipx run lintml ./src/

Decision behavior: Finding a secret or high-risk pattern should block or escalate release. This control maps to lifecycle control point 3.

L2 — Classic Model Adversarial Test: ART

Purpose: Measure resistance of Tabular/Vision/Speech models against manipulated input and compute ASR.

from art.estimators.classification import SklearnClassifier
# Use vision/tabular-appropriate attacks only (PGD/FGSM are typical for image models;
# for tabular/text models, select attack classes supported by ART for your modality)
from art.attacks.evasion import FastGradientMethod, ProjectedGradientDescent

classifier = SklearnClassifier(model=model)
attack = ProjectedGradientDescent(estimator=classifier, eps=0.1)
x_adv = attack.generate(x=x_test)
asr = compute_attack_success_rate(model, x_test, x_adv, y_test)
assert asr <= BASELINE_ASR + 0.02, "ASR exceeded threat model threshold"

Decision behavior: Compare ASR with baseline; exceeding the threat-model threshold should block or escalate release. Evidence: ASR @ epsilon report and test set hash.

L2 — LLM Security Test: Garak

Purpose: Scan LLM vulnerabilities with configurable probe plugins (prompt injection, jailbreak, encoding, leakage, toxicity). Probe count varies by version and configuration—see Garak documentation for the current probe list.

python -m pip install -U garak
# Run OWASP LLM01-related probes on a model
python -m garak --target_type openai --target_name gpt-4o \
  --probes promptinject,dan,encoding,leakreplay \
  --report_prefix garak-ci
# Filter probes by OWASP tag
python -m garak --target_type huggingface --target_name my-model --probe_tags owasp:llm01

Decision behavior: garak produces a JSONL report with success rate per probe; reviewers or automation must compare bypass rate with the threat model threshold and block or escalate release if exceeded. Evidence: garak-ci.report.jsonl.

L2 — Red Team and LLM/RAG/Agent Evaluation: Promptfoo

Purpose: Framework-based automated red team with pluggable frameworks (e.g. owasp:llm, custom suites). Map organizational policies to tests; EU AI Act coverage depends on your own test corpus—do not assume a built-in legal compliance pack without verifying Promptfoo plugin docs for your version.

Example promptfooconfig.yaml:

targets:
  - id: https
    label: prod-assistant
    config:
      url: https://api.staging.example/llm   # use staging endpoint; authenticate via CI secret
      method: POST
      headers: { 'Content-Type': 'application/json' }
      body: { prompt: '{{prompt}}' }
redteam:
  frameworks:
    - owasp:llm
    - mitre:atlas
  plugins:
    - owasp:llm
    - pii
    - rag-poisoning
  strategies:
    - prompt-injection
    - jailbreak

# Run red team in CI with context logging
npx promptfoo@latest redteam run -c promptfooconfig.yaml -o results.json \
  --tag git.sha="$CI_COMMIT_SHA"

Decision behavior: results.json output is compared with acceptance threshold (e.g., zero critical bypass). Evidence: results.json + commit tag.

L2 — Multi-Stage Red Team: Microsoft PyRIT

Purpose: Multi-turn attack automation and advanced jailbreak for LLM and agent.

pip install pyrit
# PyRIT is typically run as an orchestrator script (multi-turn attack)
python redteam/pyrit_orchestrator.py --target prod-assistant --strategy crescendo

Decision behavior: Suitable for deep seasonal testing or before major release, not every build. Evidence: conversation report and outcome.

L2 — MCP Server Static Scan: mcps-audit

Purpose: Scan MCP server source (.js, .ts, .py, .json) for OWASP MCP Top 10 and Agentic AI Top 10 anti-patterns before deploy.

npm install -g mcps-audit
mcps-audit ./services/my-mcp-server
mcps-audit ./services/my-mcp-server --json > mcp-audit.json

Decision behavior: Parse CLI exit status and --json output; critical MCP01/MCP03/MCP04/MCP05/MCP07 class findings should block or escalate release. Evidence: mcp-audit.json in Evidence Pack. Run as part of lifecycle control point 3 for repos that ship MCP servers; pair with MCP gateway at runtime (Ch.7).

Reference: razashariff/mcps-audit

L2 — Installed MCP Config Scan: Snyk Agent Scan (mcp-scan)

Purpose: Discover and scan installed MCP configurations (Cursor, Claude Desktop, VS Code, Windsurf, etc.) for tool poisoning, shadowing, and prompt injection in live tools/list output.

export SNYK_TOKEN=your-token
uvx snyk-agent-scan@latest --json > agent-scan.json
uvx snyk-agent-scan@latest ~/.cursor/mcp.json

Decision behavior: Not a model release control — use for developer workstation audits, MCP09 discovery, and SOC hygiene. Parsing --json output is experimental; do not hard-code on issue codes without version pinning. Run inside a sandbox when configs are untrusted.

Reference: invariantlabs-ai/mcp-scan (Snyk Agent Scan)

L2 — Installed MCP Scan (alternative): MCP-Shield

Purpose: Scan installed MCP servers for tool poisoning, exfiltration channels, and cross-origin escalation — complementary to Agent Scan.

Reference: riseandignite/mcp-shield

L3 — SBOM Generation: Syft

Purpose: Software dependency inventory for the supply chain.

# Install
curl -sSfL https://raw.githubusercontent.com/anchore/syft/main/install.sh | sh -s -- -b /usr/local/bin
# SBOM from project environment and image
syft dir:. -o cyclonedx-json=sbom.cdx.json
syft myorg/llm-serving:1.4.0 -o spdx-json=image-sbom.spdx.json

Evidence: sbom.cdx.json. This is produced at stages 2 and 9.

L3 — AI-BOM (ML-BOM) Generation: CycloneDX / cdxgen

Purpose: Beyond SBOM; record model, dataset, prompt, and AI services. The CycloneDX 1.7 standard (approved 2025, ECMA-424) supports ML-BOM.

# With cdxgen (OWASP CycloneDX project)
# Generate dedicated AI-BOM including model, prompt, and MCP
npx @cyclonedx/cdxgen@latest aibom .
# Or full mode with governance audit
npx @cyclonedx/cdxgen@latest -r --include-formulation -o aibom.json --bom-audit --bom-audit-categories ai-bom

For HuggingFace models, OWASP AIBOM Generator extracts model card metadata. Evidence: aibom.json (includes hash of each weight file, dataset version, and provenance). For compliance, AI-BOM can be compared against EU AI Act Annex IV requirements (Chapter 11).

L3 — Model Signing: Sigstore model-signing

Purpose: Cryptographic model signing to prove authenticity and prevent tampering. This project (sigstore/model-transparency, version 1.0 in 2025, in collaboration with OpenSSF/NVIDIA/HiddenLayer) is designed specifically for ML models and records signatures in the Rekor transparency log.

pip install model-signing
# Keyless signing with Sigstore (default)
model_signing sign ./models/model.safetensors --signature model.sig
# Verify before deployment
model_signing verify ./models/model.safetensors \
  --signature model.sig \
  --identity "ci@myorg.com" \
  --identity_provider "https://token.actions.githubusercontent.com"

Decision behavior: If verify fails, deployment must stop or be formally escalated. Evidence: model.sig + Rekor record (where used). Confidentiality: public transparency logs may not be acceptable for proprietary models—use private attestation storage or organization-controlled logs when required; see Chapter 5. Cosign can also be used for container and general artifact signing.

L4 — Policy-as-Code: OPA / Conftest

Purpose: Convert security policies into executable code for lifecycle decision points such as control points 4 and 8.

Example policy (Rego) requiring signature and absence of critical vulnerabilities:

package mlsecops.gate

deny[msg] {
  input.modelscan.issues_count > 0
  msg := "Model contains unsafe artifact"
}

deny[msg] {
  not input.model.signed
  msg := "Model is not signed"
}

deny[msg] {
  input.trivy.critical_count > 0
  msg := "Dependency with critical vulnerability"
}

# Evaluate aggregated scan output against policy
conftest test evidence-bundle.json --policy ./policies/

Decision behavior: Any deny should block or escalate the release decision. Evidence: OPA/Conftest decision log.

L6 — Runtime Guardrail: NeMo Guardrails

Purpose: Control LLM input/output at runtime (jailbreak detection, topic control, output moderation).

pip install nemoguardrails

# config/rails.yaml
rails:
  input:
    flows:
      - check jailbreak
      - check sensitive data
  output:
    flows:
      - self check output
      - mask pii

Runtime behavior: This control runs in production, not in build; but its block/allow telemetry must go to SIEM (Chapter 10). Alternative tools: Lakera Guard, Llama Guard, internal gateway.

L2 — MLOps Infrastructure and Agent Testing

Purpose: In addition to model and LLM, the MLOps infrastructure itself and agent logic must also be tested (Chapter 5).

# AI-exploits (Protect AI): known exploits against MLOps systems such as MLflow/Ray
git clone https://github.com/protectai/ai-exploits && cd ai-exploits
# AI-Infra-Guard (Tencent): discover security risks in AI infrastructure
# Agentic Security: red team for agents and tool misuse
pip install agentic_security

Behavior: These tests are typically run in staging and on a seasonal basis or before release, not every build. Critical findings must stop release.

L2 — Model Privacy Audit

Purpose: Measure Membership Inference and Model Inversion risk before publishing a model trained on sensitive data (Chapter 4).

# PrivacyRaven (Trail of Bits): black-box privacy leakage test
pip install privacyraven
# ML Privacy Meter: quantitative leakage risk assessment
pip install ml-privacy-meter

Decision behavior: If membership inference success rate exceeds the threat model threshold, the model should be retrained with DP-SGD, hardened, or escalated for risk acceptance. Evidence: privacy risk report.

Summary table: tool, command, and decision behavior

Tool	Control point / area	Representative command	Decision criterion
ModelScan	2 Load	modelscan -p model.pkl -r json	Unsafe artifact finding
Gitleaks	3 Scan	gitleaks detect --exit-code 1	Any secret found
Trivy	3 Scan	trivy fs --exit-code 1 --severity CRITICAL	Critical CVE
lintML / NB Defense	3 Scan	lintml ./src / nbdefense scan	Unsafe pattern/secret
ART	7 Test	Python script + assert ASR	ASR > baseline+δ
Garak	7 Test	garak --probes promptinject ...	High bypass rate
Promptfoo	7 Test	promptfoo redteam run	critical bypass > 0
Syft	2, 9	syft dir:. -o cyclonedx-json	— (evidence generation)
cdxgen aibom	2, 9	aibom .	— (evidence generation; enforce completeness via Conftest/OPA)
model-signing	9 Sign	model_signing sign/verify	Verify failure
Conftest/OPA	4, 8 Decision	conftest test evidence.json	Any deny
mcps-audit	3 Scan (MCP repos)	mcps-audit scan ./mcp-server --json	Critical MCP01/MCP03/MCP04/MCP05/MCP07
mcp-scan (Snyk Agent Scan)	Workstation / SOC hygiene	mcp-scan --json	Shadow MCP / tool poisoning (not CI gate)
MCP-Shield	Workstation / SOC hygiene	per tool docs	Tool poisoning / exfil channel
NeMo Guardrails	Runtime	config rails	N/A (runtime; block metrics to SIEM)

References / Source mapping

Frameworks and standards - OpenSSF: Sigstore model-signing; SLSA provenance themes - OWASP LLM Top 10 (2025): LLM01, LLM03; OWASP MCP Top 10: MCP server scan themes - EU AI Act: Art. 11 technical documentation (AI-BOM adjacency)

Implementation guidance (this guide) - Evidence Pack (Chapter 11); Release decision model (Chapter 6)

Author practical guidance - CLI examples and exit-code decision tables are implementation patterns; validate tool versions and outputs in your environment.

OWASP ML Top 10 Mapping to MLOps Stages

This table is important for classic models and the MLOps lifecycle. Note that OWASP ML Top 10 is still a draft and identifiers may change:

MLOps Stage	Related Threats
Planning and Design	All threats, because weak design spreads risk across the entire lifecycle
Data Engineering	ML02 Poisoning, ML06 Supply Chain, ML08 Skewing
Experimentation	ML06, ML07 Transfer Learning, ML10 Model Poisoning
Pipeline Dev & Test	ML02, ML06, ML10
CI / CD	ML06 Supply Chain
Continuous Training	ML02, ML06, ML08, ML10
Model Serving	ML01 Input Manipulation, ML03 Inversion, ML04 Membership, ML05 Theft, ML09 Output Integrity
Continuous Monitoring	ML01, ML02, ML08 Skewing, ML09

References / Source mapping

Frameworks and standards - OWASP ML Top 10 (draft): threat IDs in table above — identifiers may change - OpenSSF MLSecOps whitepaper (2025): MLOps lifecycle stage alignment

Implementation guidance (this guide) - OpenSSF MLSecOps Mapping (Chapter 11); Lifecycle control points (Chapter 6)

Threat, Control, and Tool Reference Card

The consolidated and complete version of this card (with a Phase column and additional details) appears in Appendix A of Chapter 15. To avoid duplication, please refer to that appendix for the full table mapping threats to tools and lifecycle stages.

References / Source mapping

Frameworks and standards - OWASP AI Exchange: AI security matrix - MITRE ATLAS: full technique mapping in Appendix B (Chapter 15)

Implementation guidance (this guide) - Appendix A — Threat, Control, and Tool Reference Card (Chapter 15)

MITRE ATLAS Mapping

Threat	Technique	ID
Prompt Injection	LLM Prompt Injection	AML.T0051
Jailbreak	LLM Jailbreak	AML.T0054
Data Poisoning	Poison Training Data	AML.T0020
Model Extraction	Exfiltration via AI Inference API	AML.T0024
Adversarial Evasion	Evade AI Model	AML.T0015
Supply Chain	Publish Poisoned Models	AML.T0058
RAG Poisoning	RAG Poisoning	AML.T0070
Retrieval Content Crafting	Retrieval Content Crafting	AML.T0066
Memory Poisoning	AI Agent Context Poisoning	AML.T0080
Tool Abuse	AI Agent Tool Invocation	AML.T0053
AI Reconnaissance	Discover AI Agent Configuration	AML.T0084
LLM Data Leakage	LLM Data Leakage	AML.T0057
Agent-tool Exfiltration	Exfiltration via AI Agent Tool Invocation	AML.T0086
AI Worm Propagation (emerging)	Related techniques: AML.T0070 (RAG Poisoning), AML.T0080 (context poisoning)—no dedicated ATLAS worm ID; prioritize ingest and agent boundaries	—
Model Resource Abuse	Cost Harvesting	AML.T0034

References / Source mapping

Frameworks and standards - MITRE ATLAS: techniques in table above — https://atlas.mitre.org/techniques - OWASP LLM Top 10 (2025): cross-walk in Appendix B (Chapter 15)

Commercial Tool Market Map

In addition to open-source tools, the commercial MLSecOps ecosystem is growing. The purpose of this table is to introduce categories for build-vs-buy decisions, not to endorse or promote specific products; selection should be based on the "Tool Selection Criteria" in the next section:

Category	Example Market Players	Use Case
Comprehensive AI security platform	HiddenLayer; Protect AI (Palo Alto Networks / Prisma AIRS, 2025); Robust Intelligence (Cisco, 2024)	Model scan, threat detection, audit
Guardrail / Runtime LLM	Lakera, Prompt Security, CalypsoAI, Lasso Security	Prompt/output filtering in production
AI governance and compliance	Credo AI, Cranium	Governance, policy, and compliance documentation
Specialized red teaming	Adversa, Mindgard	Adversarial testing of models and agents
Privacy and synthetic data	Private AI, Nightfall, Gretel, Tonic, Skyflow	PII masking, DLP, and synthetic data
Secure federated learning	Mithril Security, DynamoFL, Devron	Distributed training with privacy preservation

Note: Mentioning a product does not constitute a recommendation. Vendor ownership and product integration may have changed since publication; verify current status before procurement. For selection, first identify the threat and control, then evaluate open-source and commercial options against the criteria below.

References / Source mapping

Frameworks and standards - NIST AI RMF: Govern (build-vs-buy and supplier evaluation) - ISO/IEC 42001: supplier and third-party AI service themes

Implementation guidance (this guide) - Tool Selection Criteria; Primary Mapping

Author practical guidance - Commercial vendor names are category examples only—not endorsements.

Tool Selection Criteria

A suitable tool should have several characteristics:

• Integrate with existing CI/CD.
• Provide structured output for the Evidence Pack.
• Be capable of producing a clear pass/fail/exception signal for release decisions.
• Be versionable and auditable.
• Align with organizational policies.
• Not require permanent manual exceptions.

References / Source mapping

Frameworks and standards - OpenSSF MLSecOps whitepaper (2025): tool integration and supply-chain security themes - ISO/IEC 42001: operational planning and control (tooling as control implementation) - NIST AI RMF: Measure (evidence-producing controls)

Implementation guidance (this guide) - Evidence Pack (Chapter 11); Anti-patterns — replacing controls with tools (Chapter 9)

Emerging AI-native Threats

Modern MLSecOps must consider threats beyond traditional ML attacks. AI-native threats introduce autonomous behavior, where attackers can use AI systems to discover targets, generate attack strategies, move through connected environments, and abuse AI infrastructure.

Therefore, future MLSecOps programs must include:

• Agent behavior security
• Runtime autonomy control
• AI workload monitoring
• Propagation detection
• Adaptive red teaming

Security validation must evaluate not only whether a model is accurate or safe, but whether the complete AI system can resist autonomous attack behavior.

References / Source mapping

Emerging / research - AI worm and autonomous propagation themes — emerging / not standardized; see Chapter 3 — Emerging threats

Implementation guidance (this guide) - Agent security (Chapter 8)

Practical Principle

Tools should make security controls actionable, not replace security thinking. First identify the threat and control, then select the tool.

References / Source mapping

Implementation guidance (this guide) - Tool selection criteria; Anti-patterns (Chapter 9)

Author practical guidance - Commercial tool names in this chapter are category examples only—not endorsements.
